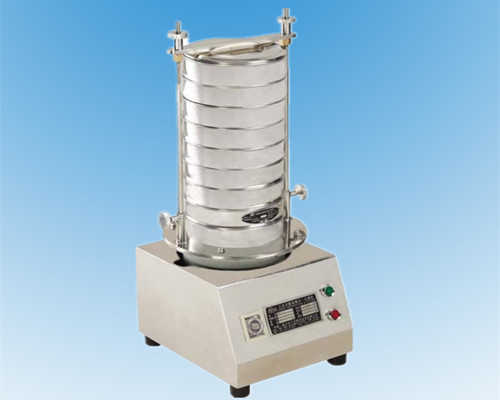

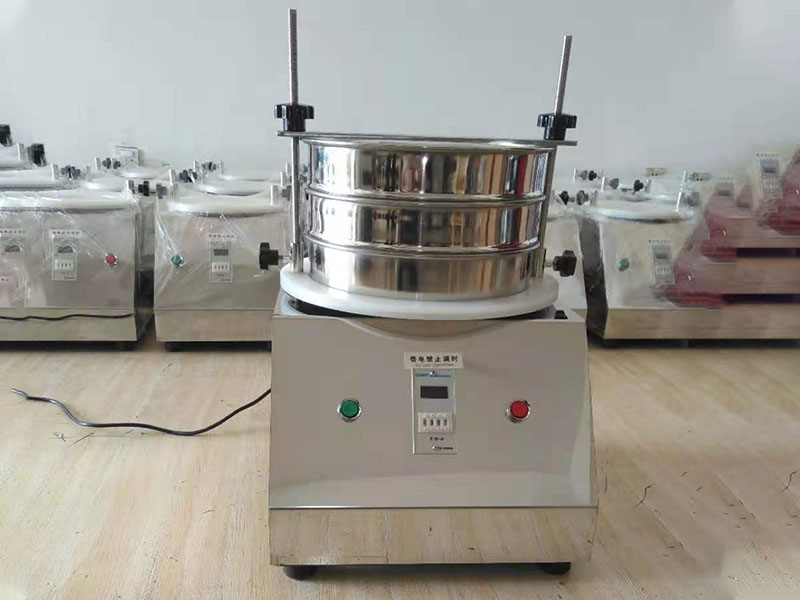

200试验筛
200试验筛广泛应用于实验室、质检室等检验部门进行颗粒、粉类物料粒度分布测定,产品杂质含量,液体固形物含量的测定分析。产品结构紧凑、噪音低、效率高、精度准确等特点突出,采用**新型动力发生器,产生多元高频振动,对物料进行高效筛选、测定。同时可根据不同物料来通过电子延时器实现不同的工作时间,把检验误差降到低程度,保证样品分析数据的一致性,对产品质量做出精确判断。
TESTING SIEVE
testing sieve is made for the purpose of particles size distribution measurement, the determination of impurity content or solid content in liquid, which are extensively used in scientific laboratories and quality inspection departments. Our product has many features: tight structure, low noise, high efficiency, and high precision degree etc. In production process, we adopt well-qualified new type of energy generator generating multi-dimensions high frequent vibration to ensure high-efficient sieving and determination. According to different materials features, customers can set different working time by adjusting electric time controller so that the analysis errors could be reduced to minimum and therefore guarantee analysis results unanimous.
Technical Parameters
序号Number | 名称Name | 单位 unit | 数据 data |
1 | 层数 Layers | 层layer | 1-8 |
2 | 直径Diameter | mm | Φ200 |
3 | 筛分粒度Granularity | mm | 0.038-3 |
4 | 噪音Noise | dB | ≤50 |
5 | 一次投料量 Feeding capacity (once) | g | ≤200 |
6 | 振幅Amplitude | mm | ≤5 |
7 | 电压Voltage | v | 220/380 |
8 | 转速Speed | r/min | 1420 |
9 | 功率Power | Kw | 0.125 |
10 | 外形尺寸Overall dimension | mm | 360×300×736 |
11 | 整机重量 weight | Kg | 25 |
